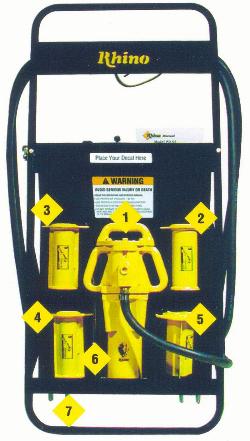

PDT-55 Rhino Transport

(Front)



PDT-55 RHINO TRANSPORT (FRONT)

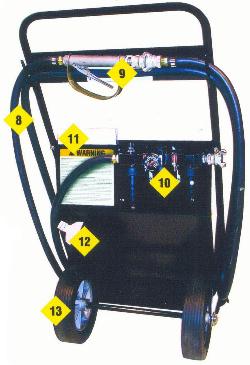

PDT‑55 Rhino Transport

(Back)



PDT-55 RHINO TRANSPORT (BACK)

Store & transport your PD‑55 driver & accessories

Unit self contains the following items





PDT-55 Description

 1. PD‑55 Medium Duty Post Driver with a 3 7/8" (98.4 mm) I.D.

    Master Chuck, uses 42 CFM (1.19 ml/min) @ 90 psi (6.4

    kg/cm'). Approx. Wt. 54.6 lbs (24.8 kg)



2. 3" (76.2 mm) I.D. Chuck Adapter

3. 2 1/2" (63.5 mm) I.D. Chuck Adapter
4. 2" (50.8 mm) I.D. Chuck Adapter
5. Channel Post Chuck Adapter ‑ 2 to 2.75 lbs/ft Posts

6. Breaker Bar with 3/4" Socket

7. 4 Extra Washers & Bolts















PDT-55 Description

8.   20.5 ft Air Hose

9.   Throttle Valve
10. Filter‑Regulator‑Lubricator
11. Operating & Service Instructions
12. 1 qt Non‑detergent Oil
13. No‑Flat Tires
