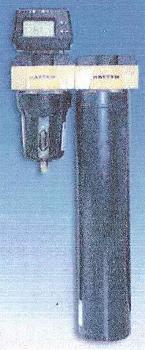

Membrane Dryer



Air Post Driver



Standard Features:



  • Space-saving modular design mates easily to prefilters and afterflers

  • Unique outside-to-inside permeation increases surface area for more efficient drying

  • Replaceable membrane bundles combine the convenience of a filter with the reliability of a dryer

  • Rugged welded aluminum housings are lightweight and robust

  • Epoxy powder coal-rig offers protection in harsh environments



MobilairTools

Kaeser's MobilairTools combine the latest manufacturing techniques and advanced materials to produce top-quality, durable tools for the construction industry. From new road construction and overpass refurbishment, to replacing gas lines and installing electrical conduits, MobilairTools provide power and reliability in today's tough environments.

Kaeser's new ergonomic tools are specially designed with vibra­tion dampening handles which reduce injury and fatigue thereby increasing efficiency and productivity. Integral mufflers help prevent noise pollution and hearing damage.

Pneumatic Post Driver



Portable Compressors



Trailer, Utility, Skid Mounts

Pneumatic Post Driver

Features:



• Vibration dampening backhead

• Delivers same hitting power as

  standard paving breakers

• Comfortable rubber handle grips

• Integral muffler for reduced noise

  pollution

• Replacement chuck bushing • Latch

  type retainer

• Automatic valves *Built-in automatic

  oiler



Model KPB 50E - 50 lb. class

Model KPB 60E - 60 lb. class

Model KPB 90E - 90 lb. class





Model

Chuck Size

(in.)

Bore

(in.)

Stroke

(in.)

BPM

cfm @ 90

psi

Vibration

m/s

Weight

(lb.)

Length

(in.)

Air Inlet

(NPT)

KPB 50E

1 x 4-1/4

1-5/8

5

1200

56

4.1

50

26-1/2

3/4

KPB 60E

1-1/8 x 6 • 1-1/4 x 6

1-3/4

6

1100

63

5.5

67

27

3/4

KPB 90E

1-1/8 x 6 • 1-1/4 x 6

2-1/4

8

1000

92

12

93

29-1/2

3/4



Air Post Driver

Features:



• Stop-rotation feature

• Counter clockwise rotation

• Built-in automatic oiler

• Latch-type retainer



Model KDR 60 - 60 lb. class

• 3 drilling speeds

• Replaceable piston stem bearing

• Rubber handle grips

• Available wet or dry

Model

Chuck Size

(in.)

Bore

(in.)

Stroke

(in.)

BPM

cfm @ 90 psi

Weight

Length

Air Inlet

KDR 20

7/8 x 3-1/4 or 7/8 x 4-1/4

1-15/16

1-7/8

2900

32-36

16.5

19

3/8 male

KDR 30

718 x 3-1/4 or 7/8 x 4-1/4

2-7/16

1-7/16

2700

70-73

29

19-1/2

3/4 male

KDR 60

718 x 3-1/4 or 4-1/4 • 1 x 4-1/4

2-9/16

2-9/16

1800

95-100

59

24

3/4 male







View Kentucky DOT Sign Installation Truck

View Ohio DOT Guardrail Truck





Pneumatic Post Driver

Features:

Model KBT-37

• Built-in large automatic oiler

• Flapper valve design allows

  dirt to pass without stopping

   the tool

• Internally reinforced large

  malleable iron butt (standard)

• Pole (half-moon) and 3"

  diameter butts available

Model KHS-12

• Heavy-duty spring retainer

  allows for quick chisel

                                                          changing

                                                       • Extended reach for overhead

                                                          jobs

                                                       • High strength forged handle

                                                         with no-weld design

                                                       • Excellent for removing tile and

                                                          linoleum

                                                       Model KBT-1003

                                                       • Special nozzle amplifies air flow 25

                                                          times

                                                       • Nozzle is slotted to allow air to vent if

                                                         nozzle becomes blocked

                                                       • Excellent for removing dust and debris



Model

Bore

(in.)

Stroke

(in.)

BPM

cfm @ 90

psi

Weight

(Ib.)

Length

(in.)

Air Inlet

(NPT)

KBT-37

1-1/2

5-1/2

1450

38-42

37

48-1/4

1/2 female

KHS-12

1-1/2

1-1/2

3850

12

17

53

1/2 female

KBT-1003

-

-

-

-

10

60

1/2 female
